Fix Invalid Provider Type Specified in Dell Security Management

Affected Products:

Affected Versions:

• v10.2.11 and Earlier

Dell Security Management Server versions 10.2.11 and earlier does not implement the Cryptography API: Next Generation (CNG). Because of this, these versions of Dell Encryption cannot import or use private keys that are stored using the Microsoft Key Storage Provider.

The private key must be switched from the Microsoft Key Storage Provider to a Legacy Cryptographic Service Provider.

Validate the certificate provider type using certutil.

Example command: certutil -store my

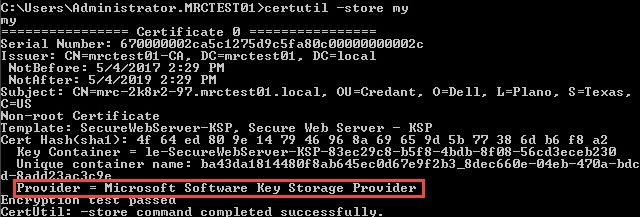

Figure 1: (English Only) Certutil -store my

This problem occurs if the provider is a Microsoft Software Key Storage Provider.

Export the certificate and private key in a PKCS#12 (PFX) format using the Certificates snap-in in the Microsoft Management Console (MMC). The PFX should be exported with Include all certificates in the certification path if possible and Export all extended properties checked.

OpenSSL contains a method to alter the Cryptographic Service Provider. A copy of OpenSSL is included with the Dell Data Protection | Enterprise Server installation beginning with v7.2. The binaries are in <INSTALL_PATH>\Dell\Enterprise Edition\OpenSSL\bin.

Change the directory to the directory containing the OpenSSL binaries.

Example command: cd C:\Program Files\Dell\Enterprise Edition\OpenSSL\bin

Use OpenSSL to convert the PFX to PEM format.

Example command: openssl pkcs12 -in C:\Temp\KSP-pfx.pfx -out C:\Temp\OpenSSL-pem.pem

Figure 2: (English Only) openssl pkcs12 -in C:\Temp\KSP-pfx.pfx -out C:\Temp\OpenSSL-pem.pem

Provide the full path to the previously exported PFX to the -in parameter. Provide a full path to a new file for the PEM output to the "-out" parameter. OpenSSL creates the file that is specified in the "-out" parameter.

When prompted for Enter Import Password: Use the password for the PFX specified during export.

When prompted for Enter PEM pass phrase: And Verifying - Enter PEM pass phrase: Enter either the same password as the PFX export password or a new password for use in the next step.

Use OpenSSL to convert the new PEM back to the PFX format with a different CSP specified.

Example command: openssl pkcs12 -export -in C:\Temp\OpenSSL-pem.pem -out C:\Temp\CSP-pfx.pfx -CSP "Microsoft Enhanced RSA and AES Cryptographic Provider"

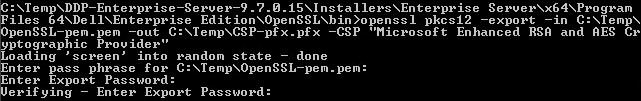

Figure 3: (English Only) openssl pkcs12 -export -in C:\Temp\OpenSSL-pem.pem -out C:\Temp\CSP-pfx.pfx -CSP "Microsoft Enhanced RSA and AES Cryptographic Provider"

Provide the full path to the previously create PEM to the "-in" parameter. Provide a full path to a new file for the PFX output to the "-out" parameter. OpenSSL creates the file that is specified in the "-out" parameter. The -CSP parameter accepts a name of a Microsoft Cryptographic Service Provider that is associated with the CryptoAPI (https://msdn.microsoft.com/en-us/library/windows/desktop/bb931357(v=vs.85).aspx) .

When prompted for "Enter pass phrase for <PEM_FILE>:" Use the password for the PEM specified during the PEM generation step.

When prompted for the Enter Export Password: and Verifying - Enter Export Password: enter either the same password as the original PFX export password or a new password for use with the resulting PFX file.

Delete the previous certificate from the Local Computer’s Personal store using the Certificates snap-in in the Microsoft Management Console (MMC).

Import the PFX generated with OpenSSL to the Local Computer’s Personal store using the Certificates snap-in in the Microsoft Management Console (MMC). The PFX should be imported with Mark this key as exportable. And Include all extended properties.

Validate the certificate provider type using certutil.

Example command: certutil -store my

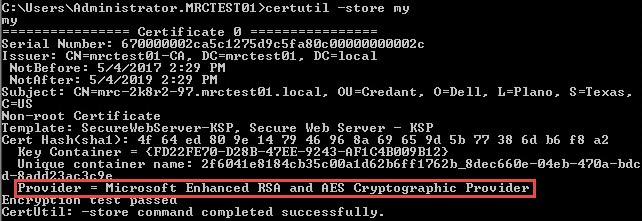

Figure 4: (English Only) certutil -store my

Use the Configure Certificates…, Import DM Certificate…, and Import Identity Certificate… menu options in the Server Configuration Tool to associate the new certificate to the Dell Core Server and import the new PFX to the DDP database.
