Latitude 5591: Visual guide to your Computer
Summary: The following article provides a visual guide to your Latitude 5591 Laptop and lists the external ports and features of your computer.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
Note: For a more detailed description about each location, please go to the system manuals at www.dell.com/support
Table of Contents:
Cause
Front View

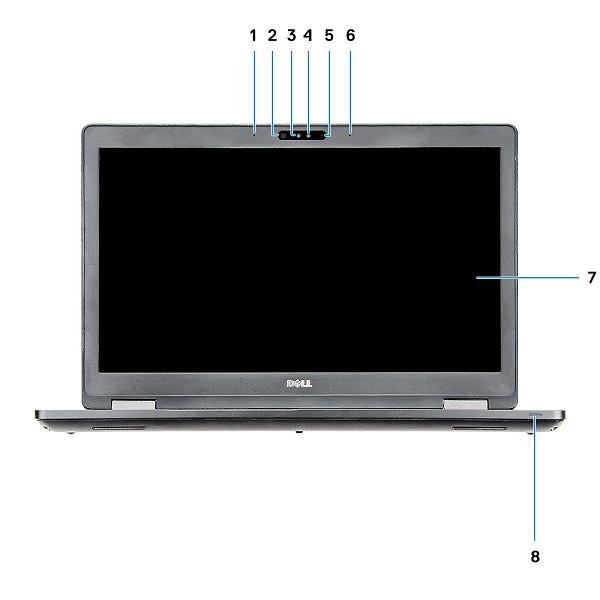

(Figure.1 Front View)
| 1 | Array Microphone | 2 | IR Camera (Optional) |
| 3 | IR Emitter (Optional) | 4 | Camera Status LED (Optional) |
| 5 | Camera (Optional) | 6 | Array Microphone |
| 7 | LCD Panel | 8 | Battery Charge Status LED |
Note: The HD camera ships as standard, the IR camera is an optional module.
Top View
(Figure.2 Keyboard View)
| 1 | Power Button/Status LED | 2 | Keyboard |
| 3 | Palm Rest | 4 | Fingerprint Reader (Optional) |
| 5 | NFC Receiver (Optional) | 6 | Touchpad |
Rear View
(Figure.3 Rear View)
| 1 | Network (NIC) Connector | 2 | HDMI Connector |
| 3 | USB 3.1 Gen1 Connector | 4 | Power Connector Port |
Left-Hand Side View
(Figure.4 Left-Hand Side View)
| 1 | DisplayPort over USB Type-C (Optional Thunderbolt 3) | 2 | USB 3.1 Gen1 Connector |
| 3 | SD Card Reader | 4 | SmartCard Reader (Optional) |
Right-Hand Side View
(Figure.5 Right-Hand Side View)
| 1 | Headset/Microphone Connector | 2 | SIM-card slot (Optional) |
| 3 | USB 3.1 Gen1 Connector | 4 | VGA Connector |
| 5 | Wedge Lock Slot |
Resolution
AC Adapter View
(Figure.6 90 W AC Adapter)
| Type 90 W | Description |
| Input Voltage | 100 V AC to 240 V AC |
| Output Current | 4.61 A |
| Output Power | 90 W |
| Output Voltage | 19.5 V DC |
(Figure.7 130 W AC Adapter)
| Type 90 W | Description |
| Input Voltage | 100 V AC to 240 V AC |
| Output Current | 6.7 A |
| Output Power | 130 W |
| Output Voltage | 19.5 V DC |
