Data Domain: DD6400 - Reboot loop at "NVRAM driver load and initialization"
Summary: PowerProtect DD6400 systems have reported being stuck in a reboot loop. The NVRAM driver fails to load or initialize successfully resulting in a system reboot.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Instructions
Affected Systems:
Cause:
Required Action:
- PowerProtect DD6400
- All DDOS versions
- Unable to boot DD6400 into DDOS

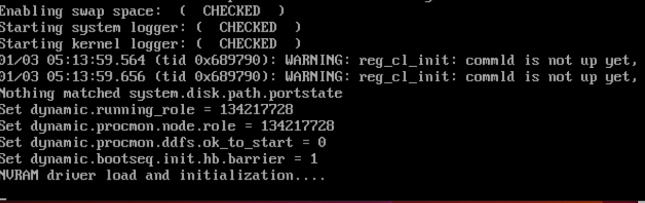

- Serial output (Virtual Console - iDRAC) shows Boot process restarts after "NVRAM driver load and initialization"
Cause:
- The DIMM located on the NVRAM card is not seated or installed correctly.
OR
- The NVRAM card is not installed correctly or is faulty.
Required Action:
With the system powered off:
- Check and reseat the DIMM on the NVRAM card.

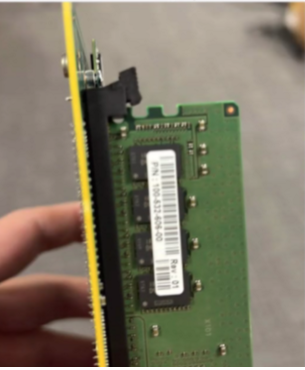

- Here is a figure showing the NVRAM DIMM not clipped in correctly
- Ensure the NVRAM card or PCI riser are seated securely.
- Power up and retry booting the system.
- If symptoms persist, replace the NVRAM (Part Number: DGK85).
Affected Products
Data Domain, DD6400 ApplianceProducts
Data Domain, Data Domain Deduplication Storage SystemsArticle Properties
Article Number: 000208323
Article Type: How To
Last Modified: 26 Jul 2023
Version: 4
