Dell Wireless Keyboard KB500 Usage and Troubleshooting Guide

Summary: The following article provides information about the Dell Wireless Keyboard KB500. You can reference each section to learn more about the features of the Dell Wireless Keyboard KB500 and how to use them. ...

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Instructions

Table of Contents:

  1. What is in the Dell Wireless Keyboard KB500 box?
  2. Wireless Keyboard Features
  3. Setting up your Wireless Keyboard
  4. Troubleshooting
  5. Additional Information

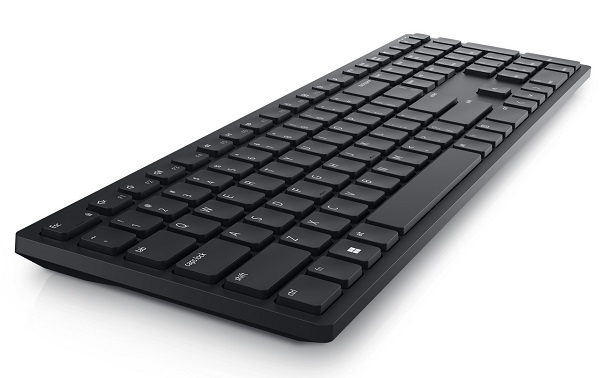

KB500 Product Shot

(Figure.1 Work faster and smarter with the Dell Wireless Keyboard KB500)



What is in the Dell Wireless Keyboard KB500 box?



What is in the box?

(Figure.2 Dell Wireless Keyboard KB500 Box Contents)

1 Wireless Keyboard 2 Universal USB Receiver
3 Batteries
(AAA x3)		 4 Documents



Back to Top



Wireless Keyboard Features



Top View

KB500 Top View

(Figure.3 Dell Wireless Keyboard KB500 Top View)

Right-Hand Side View

KB500 Right Hand Side View

(Figure.4 Dell KM3322W Premier Multi-Device Wireless Keyboard Right-Hand Side View)

Product Features

KB500 Features

(Figure.5 Dell Wireless Keyboard KB500 Product Features)

1 Power Switch 2 Battery Status LED


KB500 Bottom Features

(Figure.6 Dell Wireless Keyboard KB500 Bottom Features)

1 Keyboard Feet 2 Battery Compartment Cover
3 Battery Compartment



Back to Top



Setting up your Wireless Keyboard



Compatibility

Operating Systems:

  • Wireless 2.4 GHz Connectivity:
    • Windows Service 2012, 2012 R2, and 2016 (RF dongle only)
    • Windows 11, 10 and 8
    • Linux 6.x/Ubuntu
    • Chrome OS
    • Android OS
    • Free DOS (RF dongle only)

Using the Dell Peripheral Manager application:

  • Windows 11 and Windows 10.

Connecting the Wireless Keyboard USB Receiver

The Dell Wireless Keyboard KB500 uses a USB Type-A receiver dongle to connect to your Desktop or Laptop.

Dongle to computer

(Figure.7 2.4 GHz Connection USB Type-A Dongle)

Note: You can purchase a USB Type-C to Type-A adapter separately, if your computer does not support USB Type-A connectors.

Note: Ensure that the distance between your computer and keyboard is under 0.5 meters (1.64 ft).


You can get step-by-step instructions on the following guides:

  • Dell Peripheral Manager User's Guide
  • Dell Wireless Keyboard KB500 Quick Start Guide
  • Dell Wireless Keyboard KB500 User’s Guide

The guides are on our support site:


Back to Top



Troubleshooting



Problems Possible Solutions
Unable to use the Wireless Keyboard.
  1. Check if the battery is inserted correctly. Battery + and - ends should follow those indicated on the battery compartment label.
  2. Check the battery level.
    • If the wireless Keyboard uses a rechargeable battery, ensure that the battery is fully charged.
    • If the battery is exhausted, replace it with a new one.
  3. Turn the Wireless Keyboard off, and then turn it on again. Check if the battery-status light is flashing amber 10 times, indicating that the battery power is low. If the battery is fully depleted, the battery-status light does not turn on.
  4. Ensure that the USB receiver is directly connected to your computer. Avoid using the port replicators, USB hubs, and so on.
  5. Change the USB port. Insert the USB receiver into another USB port on your computer.
  6. Restart your computer.
Unable to pair the Wireless Keyboard to the computer using the wireless dongle.
  1. Check the battery level:
    • If the Wireless Keyboard uses a rechargeable battery, ensure that the battery is fully charged.
    • If the battery is exhausted, replace it with a new one.
  2. Turn the Wireless Keyboard off, and then turn it on again. Check if the battery-status light is flashing amber, indicating that the battery power is low. If the battery is fully depleted, the battery status light does not turn on.
  3. Restart your computer.
Keyboard buttons do not work.
  1. Check the battery level:
    • If the Wireless Keyboard uses a rechargeable battery, ensure that the battery is fully charged.
    • If the battery is exhausted, replace it with a new one.
  2. Turn the Wireless Keyboard off, and then turn it on again. Check if the battery-status light is flashing amber, indicating that the battery power is low. If the battery is fully depleted, the battery status light does not turn on.
  3. Restart your computer.
  4. Ensure that the distance between your computer and the Wireless Keyboard is within 10 meters.
Wireless connection is lost.
  1. Check the battery level:
    • If the Wireless Keyboard uses a rechargeable battery, ensure that the battery is fully charged.
    • If the battery is exhausted, replace it with a new one.
  2. Turn the Wireless Keyboard off, and then turn it on again. Check if the battery-status light is flashing amber, indicating that the battery power is low. If the battery is fully depleted, the battery status light does not turn on.
  3. Restart your computer.
  4. Ensure that the distance between your computer and the Wireless Keyboard is within 10 meters.



Back to Top

Additional Information





Dell Keyboard Support Site

Learn how to use and troubleshoot problems with the Keyboard and Keyboard you use with your computer. You can find information about Troubleshooting steps, How-To guides and relevant Support Videos for assistance.

For the Dell Wireless Keyboard KB500 User Guide, browse to the Dell Wireless Keyboard KB500 Online Manual Page. You can then touch or click View PDF to the right of the User Guide, in the Manuals and Documents section.


Back to Top

Affected Products

Dell Wireless Keyboard KB500
