Precision T5810 power supply for next HDD
Hi, in my dtp Precision T5810 are SATA connectors for 4 HDD and 2 optical devices. Number of power supply connector is limited to only 4 pieces of them. Does somebody know where to connect power supply for next hard drive?
On the power supply card is one free power cup. I'm not sure for what purpose is this.
T5810 power supple card
Thank you for advice. Kind regards.
Chino de Oro
8 Wizard
8 Wizard
•
6.3K Posts
0
April 25th, 2023 12:00
The 10-pin connector is for 2nd CPU on T7810 or additional PEG cable for graphics card on T5810 (selected PSU only).

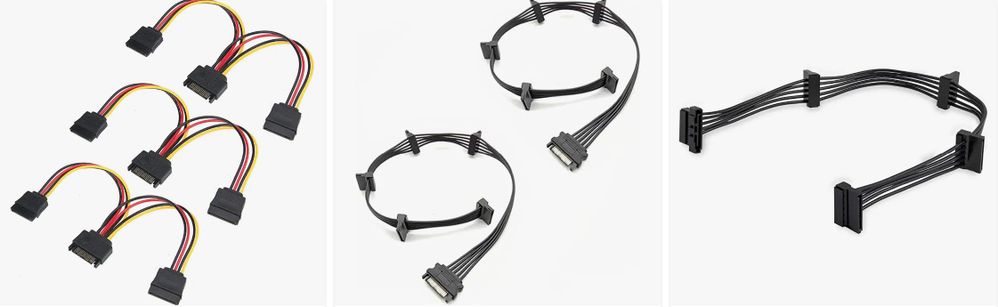

To get more SATA power for your additional hard drives, use splitters.
