Dell Pro Stereo Headset WH1022 Usage and Troubleshooting Guide
Summary: The following article provides information about the Dell WH1022 Pro Stereo Headset. You can reference each section to learn more about the features of the Dell WH1022 Pro Stereo Headset and how to use it. ...
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Instructions
Table of Contents:
- What is in the Dell WH1022 Pro Stereo Headset box?
- Pro Stereo Headset Features
- Setting up your Pro Stereo Headset
- Troubleshooting
- Additional Information
Enjoy a comfortable and distraction-free learning experience with adaptive audio, adjustable noise-cancelling microphone, and accessible audio controls.
(Figure.1 Work faster and easier with the Dell WH1022 Pro Stereo Headset)
What is in the Dell WH1022 Pro Stereo Headset box?

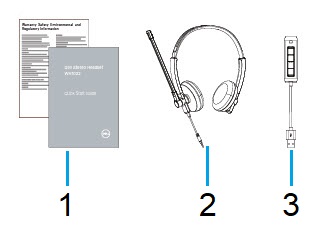

(Figure.2 Dell WH1022 Pro Stereo Headset Box Contents)
| 1 | Documents | 2 | Pro Stereo Headset |
| 3 | Headset Controls |
Pro Stereo Headset Features
Top View

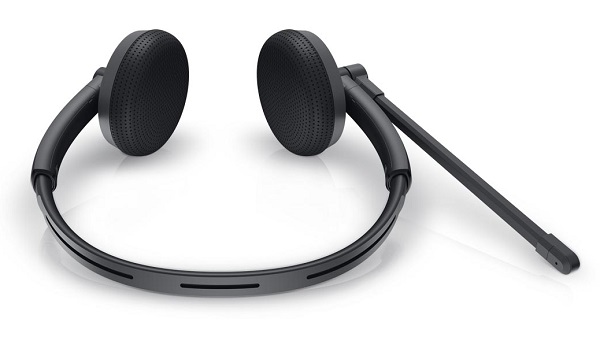

(Figure.3 Dell WH1022 Pro Stereo Headset Top View)
Left View

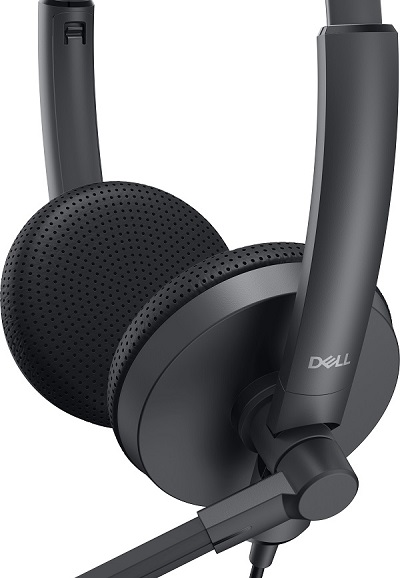

(Figure.4 Dell WH1022 Pro Stereo Headset Left View)
Product Features

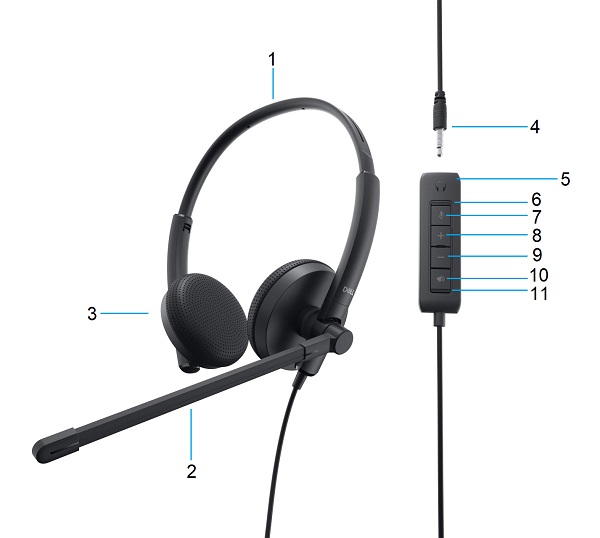

(Figure.5 Dell WH1022 Pro Stereo Headset Product Features)
| 1 | Adjustable Headband | 2 | Adjustable Noise Cancelling Microphone Boom |
| 3 | Leatherette Ear Pads | 4 | 3.5 mm Audio Jack |
| 5 |
|
Control Functions

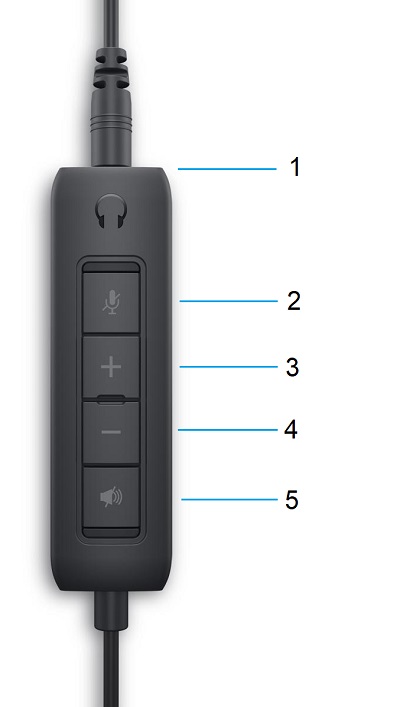

(Figure.6 Controls)
| Inline Controls | LEDs | What they mean | |
|---|---|---|---|
| 1 | Headphone Connection | None | Where the headphones connect to the controls |
| 2 | Mic. Mute Button | Solid Red | Mute On |
| Off | Mute Off | ||
| 3 | Volume Up Button | None | Increases the listening volume |
| 4 | Volume Down Button | None | Decreases the listening volume |
| 5 | Speaker Mute Button | Solid Green | Power On |
| Off | Power Off |
Setting up your Pro Stereo Headset
Compatibility
Operating Systems:
-
Windows 11, Windows 10, and Mac

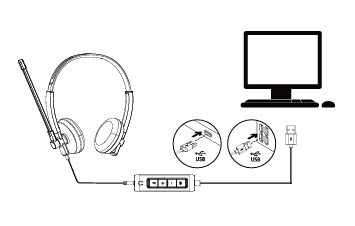

Connecting the Pro Stereo Headset
The Dell WH1022 Pro Stereo Headset uses a 3.5 mm audio jack to connect to the control panel. The control panel uses a USB Type-A connector to connect to your Desktop or Laptop computer.
(Figure.7 USB Type-A Connector)
Troubleshooting
| Problems | Possible solutions |
|---|---|
| No audio from headset |
|
| Echo heard from the microphone |
|
| Buzzing noise heard on calls |
|
| Unable to hear audio clearly |
|
| Computer speakers playing audio despite having the headset connected |
|
Additional Information
Additional Information
Dell Pro Stereo Headset troubleshooting knowledge base for audio devices
Learn how to use and troubleshoot problems with the Headset that you use with your computer. You can find information about Troubleshooting steps, How-To guides, and relevant Support Videos for assistance.
For the Dell WH1022 Pro Stereo Headset User Guide, browse to the Dell WH1022 Pro Stereo Headset Online Manual Page. You can touch or click the View PDF to the right of the Pro Stereo Headset User Guide. It is located in the Manuals and Documents section.
