Avamar: GoAV Tool

Overview

GoAV is a command-line interface (CLI) tool written in the "Go" programming language. The name "GoAV" comes from the combination of "Go" and "Avamar." New features are added to GoAV periodically.

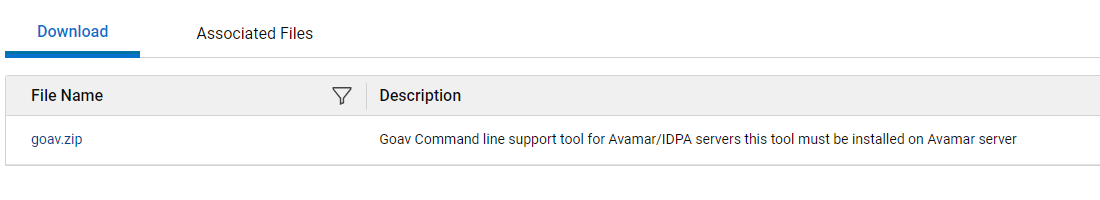

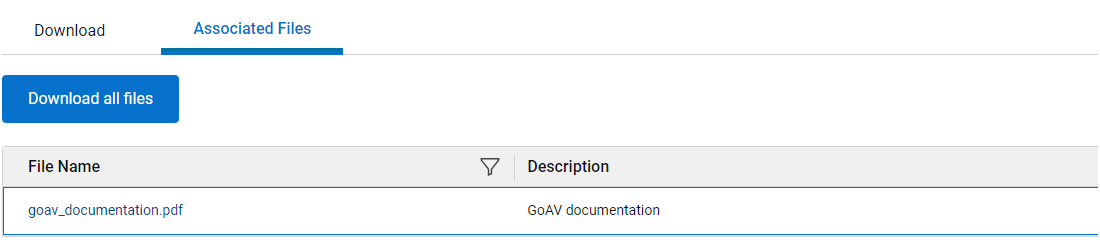

Downloading the latest GoAV Tool

Installing the GoAV Tool

unzip -o goav.zip

chmod a+x goav

./goav version show

===========================================================
GoAv    :        1.63
Avamar  :        19.10
Date    :        16 Feb 2024 12:44 EST
===========================================================
COMMAND :  ./goav version show
NOTE: This is not an official tool
===========================================================
GoAV : 1.63



Update the existing Goav Version:

The update feature checks the current version of GoAV on the repository site and attempts to pull the latest version:


./goav update



Command Structure

GoAV has the root command, "goav" and subcommands paired with their own set of flags.

Command line tool for Avamar.

Usage:
  goav [command]

Available Commands:
  activity      Activity related operations.
  client        Client related operations.
  dataset       Dataset related operations.
  dd            DataDomain related operation
  documentation Generate GOAV PDF documentation.
  envinfo       Environment Information.
  help          Help about any command
  idpa          Allows a user to check or fix multiple internal client/policy issues
  ndmp          NDMP related operations
  plugin        Avamar plugin related operation.
  policy        Policy related operations.
  proxy         Avamar VMImage proxy related operations.
  rabbitmq      RabbitMQ related operations.
  replication   Replication related operations.
  retention     Retention related operations.
  rule          Rules related operations.
  schedule      Schedule related operations.
  security      certificate, keystore, secure operations
  system        Avamar system related operations.
  update        Update GOAV to latest version.
  vcenter       vCenter related operations.
  version       Displays the GoAV version information.
  vm            Virtual Machine related operations.

Flags:
  -d, --debug      debug output
  -f, --force      Ignore Configuration
  -h, --help       help for goav
  -n, --noheader   Do not display header

Use "goav [command] --help" for more information about a command.



Get Command Help.

Get help for any command by using the global flag, "-h" :


./goav client show-gsan -h

Show Avamar clients in gsan, as opposed to mcdb
Gsan is where backups are actually stored, it is useful to get a list from gsan instead of mcdb sometimes!

Usage:
  goav client show-gsan [flags]

Aliases:
  show-gsan, list-gsan

Examples:
./goav client show-gsan
./goav client show-gsan --domain /REPLICATE
./goav client show-gsan --hasBackups
./goav client show-gsan --noBackups --domain /MC_RETIRED --hasbackups

Flags:
      --domain string   Specify domain root to start recursive search from (default "/")
      --hasBackups      List clients with backups in gsan, excluding clients without backups
  -h, --help            help for show-gsan
      --noBackups       List clients with no backups in gsan, excluding clients with backups
      --out string      Specify output filename for report (default "/home/admin/goav_clients/client_list_report_2023-07-10-1689007451.csv")

Global Flags:
  -d, --debug      debug output
  -f, --force      Ignore Configuration
  -n, --noheader   Do no display header



Example Usage

Show all proxies connected to Avamar:


./goav proxy show

===========================================================
GoAv    :        1.51
Avamar  :        19.8
Date    :        10 Jul 2023 12:48 EDT
===========================================================
COMMAND :  ./goav proxy show
NOTE: This is not an official tool
===========================================================
              name                 | domainFqdn |            vcenterHost            |                    id                    | activated | autoDsMapping | clientVersion
-------------------------------+------------+-----------------------------------+------------------------------------------+-----------+---------------+----------------
  abc-proxy-95.example.company.com | /clients   | xyz-test1-vcenter.lab.company.com | e90b74a9c0c4569d1a0b84fd6ff4f3026939bd12 | true      | false         | 19.8.100-83
  abc-proxy-96.example.company.com | /clients   | xyz-test1-vcenter.lab.company.com | 214d56edb74df890bd88f0c06360216b423ce5fd | true      | false         | 19.8.100-83



References:

The following knowledge articles provide additional information about specific GoAV features:

• Article 000221404: Avamar: How to Use Goav system health-check menu
• Article 000215679: Avamar: Information About Goav dd check-ssl Feature
• Article 000204386: Avamar 19.3+: Goav security keystore health check, fix, regenerate, and show operations
• Article 000220471: Avamar: How to Use Goav Proxy Deployment Manager
• Article 000225881: Avamar: How to Use Goav Integration Data Protection Appliance feature
• Article 000223619: Avamar: How to Use Goav Client Bare Metal Recovery Menu
• Article 000216619: Avamar: How to Use Goav Network Data Management Protocol Firewall Menu
• Article 000210222: Avamar: How to use the Goav RabbitMQ feature set
• Article 000227896: Avamar: Client ID (CID) mismatches with Goav remediation
• Article 000188866: How to Deploy IDPA 2.6 and Avamar Proxy Patches and Hotfixes with GOAV

For additional details watch this video:
