PowerEdge: iDRAC Virtual Console Troubleshooting

Summary: Systems Management How to Video that covers how to Troubleshoot the iDRAC Virtual Console.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Instructions

This training video covers the basics of troubleshooting iDRAC Virtual Console issues.

How To Troubleshoot The iDRAC Virtual Console

Duration: 00:06:35 (hh:mm:ss)
When available, closed caption (subtitles) language settings can be chosen using the CC icon on this video player.



Note: Starting with release version 6.00.02.00, access to Virtual Console uses only eHTML5. eHTML5 Virtual Console traffic is routed through port 443, and the port configuration is no longer an option in the user interface.


Scenario One: Port 5900 or Cannot access Virtual Console


 Steps to Perform:
  • Open up the browser and go to https://iDRAC_ip:5900
  • It should present a white screen telling you there is a certificate on that port
    You have a SSL certificate for remote presence port. You should close this window now. Close

  • If you do not get this screen, port 5900 is being blocked, and it is a network or firewall issue.

  • We can test from a system in the same subnet to try to prove it further.

  • The DRAC can be cycled running the command: racadm racreset



Scenario Two - Plugins

Plugin 1: HTML5

  • On launch does a pop-up for certificate validation.
  • Steps to Perform:
  • Timeout on the certificate pop-up is short - latency on the environment can impact.
  • If using Internet Explorer, iDRAC cannot be in the Compatibility View Settings.
  • Try a different browser or clear cache since it is all browser side.

Plugin 2: Java

Process: Leverages installed Java for a plug-in downloaded at Launch

Steps to perform:

  • Ensure that Java is installed.
  • Check the installed Java version for compatibility - iDRAC6 only supports Java 8 u121 and older.
  • Try HTML5 to confirm it is a Java Plugin issue.
  • Add iDRAC to the Exception Site List in the Control Panel > Java > Security.
  • Sometimes, Java is blocked by a Group Policy Object.

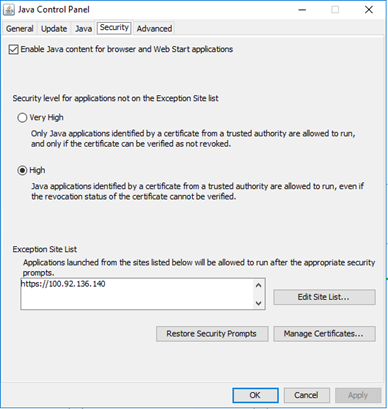

Java Control Panel Security Settings

Plugin 3: ActiveX

Process: Installs a plug-in for Internet Explorer to use in that browser only.

Troubleshooting:

  • Ensure ActiveX is not blocked by GPO or Browser.
  • Delete the ActiveX plug-in from IE by clicking  Tools > Manage Add-ons. Should be under Toolbars and Extensions.

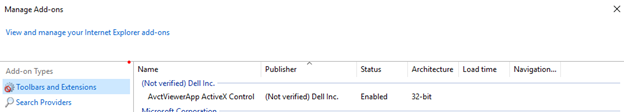

IE Manage Add-ons section


  • Now relaunch ActiveX.

  • Since it is both a pop-up and a download, it is the most commonly blocked plug-in.



Scenario Three - iDRAC Configuration

In the iDRAC user interface, under Configuration > Virtual Console, ensure it is Enabled and configured as you expect.

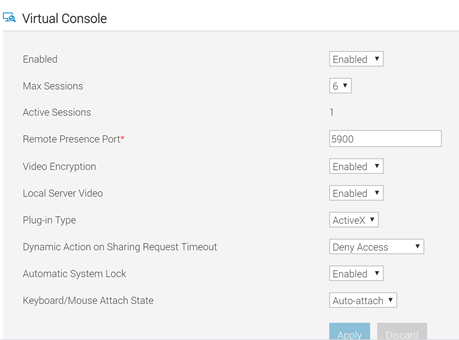

virtual console settings in the iDRAC web GUI


Scenario 4: Keyboard/Mouse redirection is failing

Troubleshooting Step 1 iDRAC Configuration

  • In the iDRAC user interface, under Configuration > Virtual Console, ensure Keyboard/Mouse Attach State is set to Auto-Attach.
  • Sometimes switch it off then back on again to regain functionality.
  • Does keyboard/mouse redirection work during POST? If yes, then we are talking an operating system issue, most likely driver related.
  • Does a physical keyboard/mouse work? If no it is a hardware issue.
  • If a physical keyboard works, but Virtual Console keyboard/mouse redirection does not work in POST or operating system, run racadm racresetcfg to rebuild it from scratch.


Affected Products

iDRAC7, iDRAC8, iDRAC9
