Latitude E7450: System Status LED Guide
Summary: The following article is a visual guide to the LED indicators on your Latitude E7450 laptop.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
Table of Contents:
A Guide to the System Status LEDs on your Latitude E7450
I have created a visual guide below which shows the various LED indicators on your laptop. I have shown what the LEDs represent. What each of the stages are that the LED can go through.
Note: I have added links to several other troubleshooting guides at the bottom of the page. (Contact technical support if you see an LED diagnostic code that these articles do not describe.)
Cause
This section is not applicable.
Resolution
The External LEDs
The small indicator lights on the laptop are Light Emitting Diodes (LEDs). They serve as status lights for your laptop.
In this section, we deal with the three LEDs along the top edge on the exterior of the laptop.

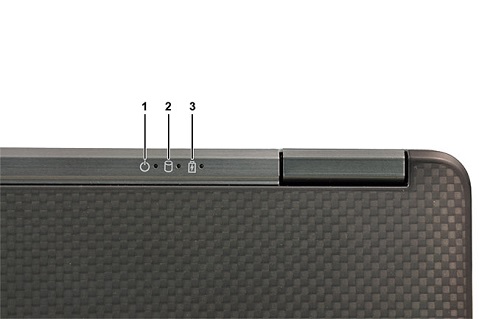

(Figure.1 External LEDs)
| 1 | Power LED - Indicates the Power Status | 2 | Hard drive Activity LED - Turns white when the laptop reads or writes to the hard drive. |
| 3 | Battery LED - Indicates the Battery Status |
Note: To Avoid Data Loss, you should never turn the laptop off while the hard drive activity indicators are flashing.
The Power LED indicates the power status as follows:
| Power State | LED Behavior |
|---|---|
| On | Solid White |
| Standby | Breathe White (Flashes slowly). |
| Off, Hibernate | Off |
The Battery LED indicates the Battery status as follows:
| Battery State | LED Behavior |
|---|---|
| Non-Dell AC adapter plugged to Laptop | Alternately blinking Amber and White light |
| Temporary Battery Failure with AC Adapter present | Alternately blinking Amber with a steady White light |
| Fatal Battery Failure with AC Adapter present | Constantly blinking Amber light |
| Battery in Full-Charge Mode with AC Adapter present | Light off |
| Battery in Charge Mode with AC Adapter present | Constant White light |
The Palmrest LEDs
The Device status LEDs are located across the top-right hand side of the keyboard. They display the status of the Storage, Battery, and the Wireless Activity. You can use them as a diagnostics tool.

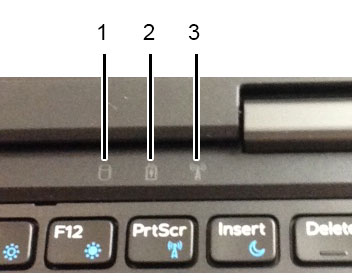

(Fig.2 Status LEDs)
| 1 | Storage LED | 2 | Power LED |
| 3 | Wireless LED |
For more information about using the LEDs to further troubleshoot any issues you are having, check the Links section.
