Dell Precision 5550 Visual Guide
Summary: The following article provides a visual guide to your Precision Mobile Workstation 5550 and lists the external ports and features of your laptop.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
No Symptom Information
Cause
No cause information
Resolution
NOTE: For a more detailed description of each location, go to the product manuals at www.dell.com/support.
Table of Contents:
- Front View
- Top View
- Bottom View
- Left-Hand Side View
- Right-Hand Side View
- AC Adapter View
- Additional Info:
Front View

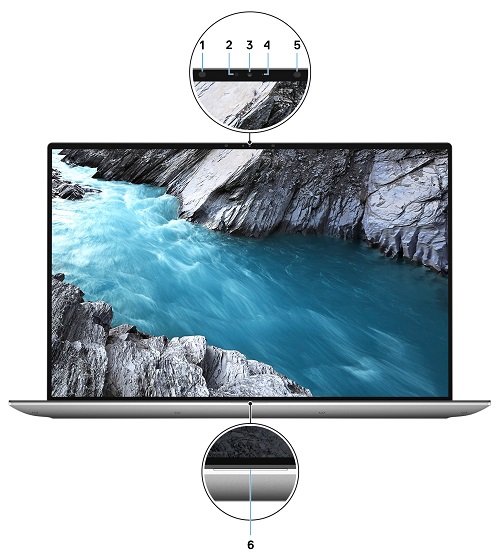

Figure 1: Front View
| 1 | Infrared emitter | 2 | Ambient-light sensor |
| 3 | Infrared camera (RGB) | 4 | Camera Status LED |
| 5 | Infrared emitter | 6 | Camera Status LED |
Top View

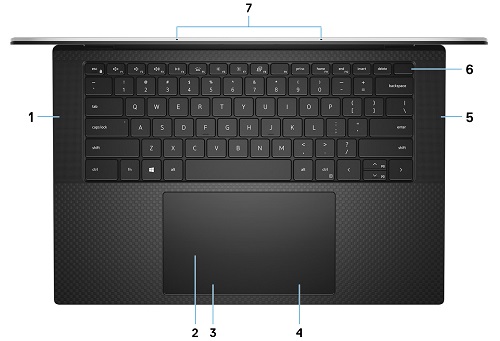

Figure 2: Top View
| 1 | Left speaker | 2 | Touchpad |
| 3 | Left-click area | 4 | Right-click area |
| 5 | Right speaker | 6 | Power button with Fingerprint Reader |
| 7 | Microphones (2) |
Bottom View

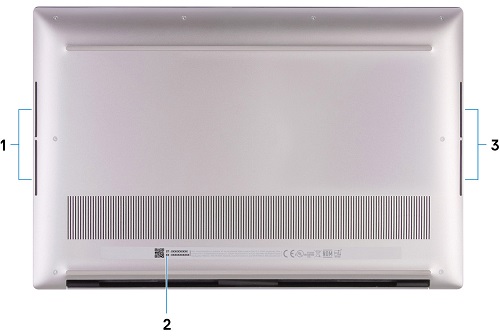

Figure 3: Bottom View
| 1 | Left Woofer | 2 | Service Tag Label |
| 3 | Right Woofer |
Left-Hand Side View
Figure 4: Left-hand Side View
| 1 | Wedge-shaped security slot |
| 2 | 2 x USB 3.2 Gen 2 Type-C port with Thunderbolt 3 (Power Delivery) |
Right Side View
Figure 5: Right-hand Side View
| 1 | USB 3.2 Gen 2 Type-C Display port |
| 2 | SD-card slot |
| 3 | Universal Audio port |
AC Adapter View
Figure 6: Power Adapter 90 W Type-C
| Description | Values | |
| Type | 90 W Type-C Connector | 130 W Type-C Connector |
| Input Voltage | 100 VAC to 240 VAC | 100 VAC to 240 VAC |
| Output Current | 20 V/4.5 A (Continuous) 15 V/3 A (Continuous) 9.0 V/3 A (Continuous) 5.0 V/3 A (Continuous) |
20 V/6.5 A (Continuous) 5.0 V/3 A (Continuous) |
| Output Power | 90 W | 130 W |
| Output Voltage | 20 VDC | 15 VDC | 9 VDC | 5 VDC | 20 VDC | 5 VDC |
