Dell EMC Unity: Dynamic pools minimum drives count on creation wizard (User correctable)
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Instructions

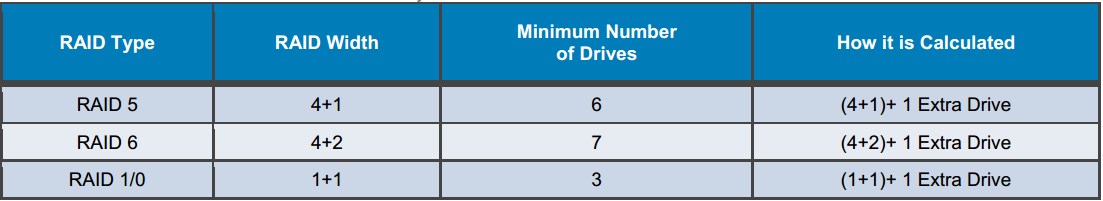

On Dynamic Pool creation wizard, there is a minimum number of drives that need to be selected to create the Pool. This number directly depends on the RAID type selected, and a warning will be provided if the minimum drive count is not satisfied. The table below shows the relationship between the RAID type, the RAID width, and the minimum number of drives to create the Pool. This table only shows the smallest RAID widths supported, and the minimum number of drives it takes to create them. As an example, the smallest RAID 5 RAID width the system supports is a 4+1. The smallest Dynamic Pool created with the RAID 5 4+1 configuration is 6 drives. The minimum drive count includes the number of drives specified in the RAID width, plus an extra drive to satisfy the spare space requirements.
Affected Products
Dell EMC Unity FamilyProducts
Dell Unity 300, Dell EMC Unity 350F, Dell EMC Unity 400, Dell EMC Unity 400F, Dell EMC Unity 450F, Dell EMC Unity 500, Dell EMC Unity 500F, Dell EMC Unity 550F, Dell EMC Unity 600, Dell EMC Unity 600F, Dell EMC Unity Family |Dell EMC Unity All Flash
, Dell EMC Unity Family
...
