GUID and the UUID may not match System Center Configuration Manager (SCCM)

Summary: The globally Unique Identifier (GUID) and the Universally Unique Identifier UUID may not match in System Center Configuration Manager (SCCM).

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.

Symptoms

Not applicable

Cause

Due to differences in encoding and storage of the GUID/UUID between the BIOS and Windows, some of the data in the GUID stream is transposed when queried by SCCM.

Resolution

Manually entering the GUID seen at Preboot eXecution Environment (PXE) boot does not work match what is in the SCCM server.

Due to differences in encoding and storage of the GUID/UUID between the BIOS and Windows, some of the data in the GUID stream is transposed when queried by SCCM. See examples below:

PXE GUID Readout
Figure 1: PXE GUID Readout

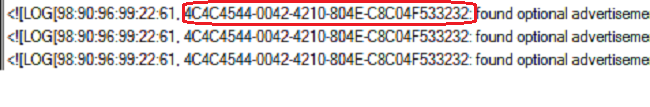

SCCM UUID Readout
Figure 2: SCCM UUID Readout

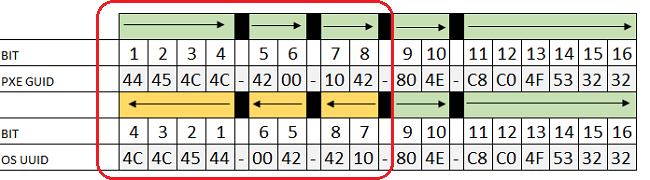

Convert the GUID to the UUID

Convert the GUID to the UUID
Figure 3: Convert the GUID to the UUID

Most computers fall into this transposition algorithm; use this if entering the UUID manually into SCCM is wanted.

Article Properties
Article Number: 000148681
Article Type: Solution
Last Modified: 07 Mar 2024
Version:  4
