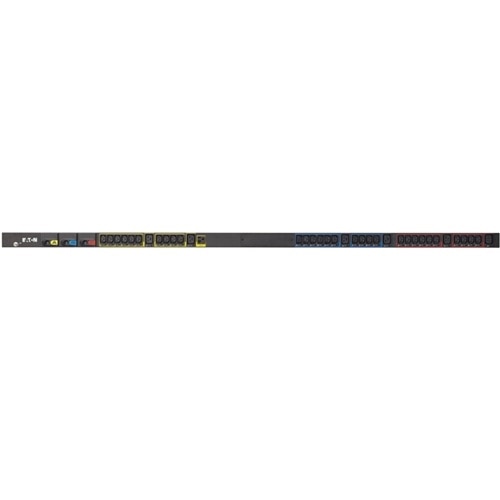

Eaton Basic rack PDU, 0U, L21-30P input, 8.64 kW max, 120/208V, 24A, 10 ft cord, Three-phase, Outlets: (1) 5-20R, (30) C13 Outlet grip, (6) C19 Outlet grip

Name: Eaton Basic rack PDU, 0U, L21-30P input, 8.64 kW max, 120/208V, 24A, 10 ft cord, Three-phase, Outlets: (1) 5-20R, (30) C13 Outlet grip, (6) C19 Outlet grip
Brand: Eaton
SKU: a8369762

Eaton G3 Basic ePDUs provide reliable power distribution for IT and data center applciations. Desgined to operate at high temperatures for high reliability and made from light-weight aluminum for ease of installation.

$746.00

Financing Offers Learn More

Add to Cart

Manufacturer part EBA310-10 | Dell part A8369762 | Order Code a8369762 | Eaton

Compare Compare

IEC outlet grip plug retention secures plugs in place using standard cables
High operating temperature (140F / 60C) for containment or hot network closet environments
Color coded outlet sections simplify load balancing
Low profile form factor reduces interference into the rail space
Ease of installation using pre-installed buttons for tool-less mounting
Designed for mission critical IT or data center applications

ePDU G3 models feature IEC outlet grip, color-coded outlet sections, low-profile form factor and a high operating temperature for best-in-class power management
Clearly labeled circuits simplify load balancing
Ranges from 15A to 30A up to 208V to offer a variety of plug and outlet configurations
Available in horizontal and vertical solutions for a wide range of key applications
Cost effective solutions to meet your Basic needs
UL 60950 compliant to meet industry requirements

Tech Specs

Technical Information

Plug/Connector Type

NEMA L21-20P

Receptacle Type

IEC 60320 C13
IEC 60320 C19
NEMA 5-20R

Receptacle Detail

1 x NEMA 5-20R
30 x IEC 60320 C13
6 x IEC 60320 C19

Power Description

Input Voltage

120 V AC
230 V AC

Input Voltage Range

120 V AC - 208 V AC

Power Rating (Watt)

8640 W

Input Current

24 A

Circuit Breaker

Yes

Physical Characteristics

Mount Type

Rack-mountable

Rack Height

38U

Cord Length

10 ft

Height

66.5"

Width

2.1"

Depth

2.1"

Weight (Approximate)

18 lb

Miscellaneous

Certifications & Standards

UL Listed ITE 60950-1

Warranty

Limited Warranty

3 Year
