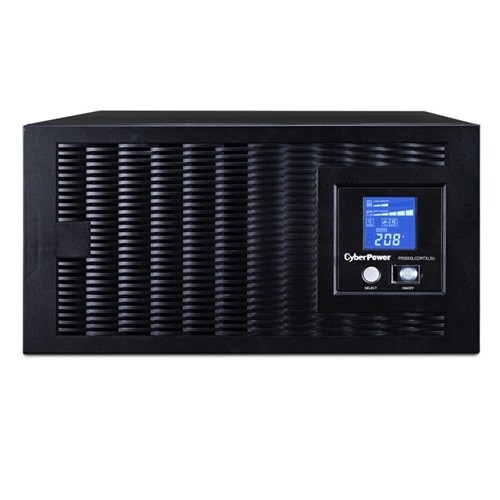

CyberPower PR5000LCDRTXL5U Smart App Sinewave UPS Systems

Name: CyberPower PR5000LCDRTXL5U Smart App Sinewave UPS Systems
Brand: CyberPower Systems (USA)
SKU: aa197455

CyberPower PR5000LCDRTXL5U Smart App Sinewave UPS Systems thumb 1

CyberPower PR5000LCDRTXL5U Smart App Sinewave UPS Systems thumb 2

$3,540.97

Limited Stock

Financing Offers Learn More

Add to Cart

Manufacturer part PR5000LCDRTXL5U | Dell part AA197455 | Order Code aa197455 | CyberPower Systems

Compare Compare

A rack/tower convertible UPS with line interactive topology, the CyberPower Smart App Sinewave PR5000LCDRTXL5U provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR5000LCDRTXL5U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR5000LCDRTXL5U comes with a three-year warranty (including coverage of batteries) and a $300,000 Connected Equipment Guarantee.

Shop Similar Products

Tech Specs

Technical Information

AVR

Yes

Plug/Connector Type

NEMA L6-30P

Receptacle Type

NEMA L6-20R
NEMA L6-30R

Receptacle Detail

2 x NEMA L6-20R
3 x NEMA L6-30R

Transfer Time

4 ms

Dataline Protection

RJ-11/RJ-45

Energy Saving

GreenPower UPS™ Bypass Technology

Application/Usage

Corporate
Mission Critical Equipment
Network Device
Server
Storage
Telecommunication
VoIP
Workstation

Number of Battery & Surge Outlets

Number of Critical Load Outlets

Overload Protection

Yes

Emergency Power OFF

Yes

Cord Length

10 ft

EMI/RFI Noise Filter

Yes

Surge Suppression

Yes

Features

Audible Alarm
Auto Charge
Auto Restart
Cold Start Function
Self Test

Power Description

Load Capacity (VA)

5000 VA

Input Voltage

230 V AC

Input Voltage Range

131 V AC - 268 V AC
148 V AC - 254 V AC
208 V AC - 240 V AC

Output Voltage

208 V AC

Input Frequency

47 Hz
63 Hz

Output Frequency

50 Hz
60 Hz

Waveform Type

Sine Wave

Surge Energy Rating

2430 J

Load Capacity (Watt)

4500 W

Circuit Breaker

Yes

Output Power Factor

0.9

Management

Network Management

Relay-MS Card
SNMP/HTTP Remote Monitoring

Alarm

Battery Mode
Low Battery
Overload

Controls/Indicators

Status Indicators

LCD Panel:

Load/Current Level
Runtime
Battery Level Temperature (F & C)
Battery In Use
Input Voltage
Output Voltage
Output Frequency
Overload
Wiring Fault
Battery Shutdown Voltage
Static Frequency Tolerance
Slew Rate
Silent Mode
Normal Mode

LED Indicators:

Power On

Interfaces/Ports

Serial Port

Yes

USB

Yes

USB (HID Compliant) Port

Yes

EPO Port

Yes

Network (RJ-45)

Yes

Battery Information

Number of Batteries

Battery Chemistry

Lead Acid

Battery Size

12V

Battery Capacity

9000 mAh

Backup/Run Time (Full Load)

10 Minute

Backup/Run Time (Half Load)

26 Minute

Typical Battery Recharge Time

8 Hour

Battery Characteristics

Sealed

Hot Swappable

Yes

Replaceable Battery

Yes

Environmental Conditions

Maximum Operating Temperature

104^°F (40^°C)

Storage Temperature

5^°F (-15^°C) - 113^°F (45^°C)

Maximum Operating Elevation

10000 ft

Maximum Storage Elevation

50000 ft

Operating Humidity

0% - 95%

Minimum Operating Temperature

32^°F (0^°C)

Thermal Dissipation

1269.58 W

Physical Characteristics

Form Factor

Tower/Rack Convertible

Rack Height

Height

8.7"

Width

17"

Depth

24.3"

Weight (Approximate)

222.01 lb

Color Family

Black

Product Color

Black

Miscellaneous

Package Contents

Smart App Sinewave PR5000LCDRTXL5U 5000 VA Rack-mountable UPS
Front Panel
2 x Rack Mount Ears (stands)
User's Manual
Set of Rack Mount Rails (left and right)
34 x Rack Mount Ear & Rails Screws
8 x Screw Hole Dust Covers
Warranty Registration Card
Emergency Power Off Cable (gray)
PowerPanel® Business Edition Software CD
2 x Serial Interface Cables (DB-9)
USB A+B Type Cable

Certifications & Standards

FCC Class A certified
UL 1778
CSA C22.2 No. 107.3-05

Software Included

PowerPanel® Business Edition

Energy Star

Yes

Country of Origin

Philippines

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year

Additional Warranty Information

Three-year warranty (including coverage of batteries)

Directly Connected Equipment Guarantee

$300000 Lifetime

Display & Graphics

Display

LCD
